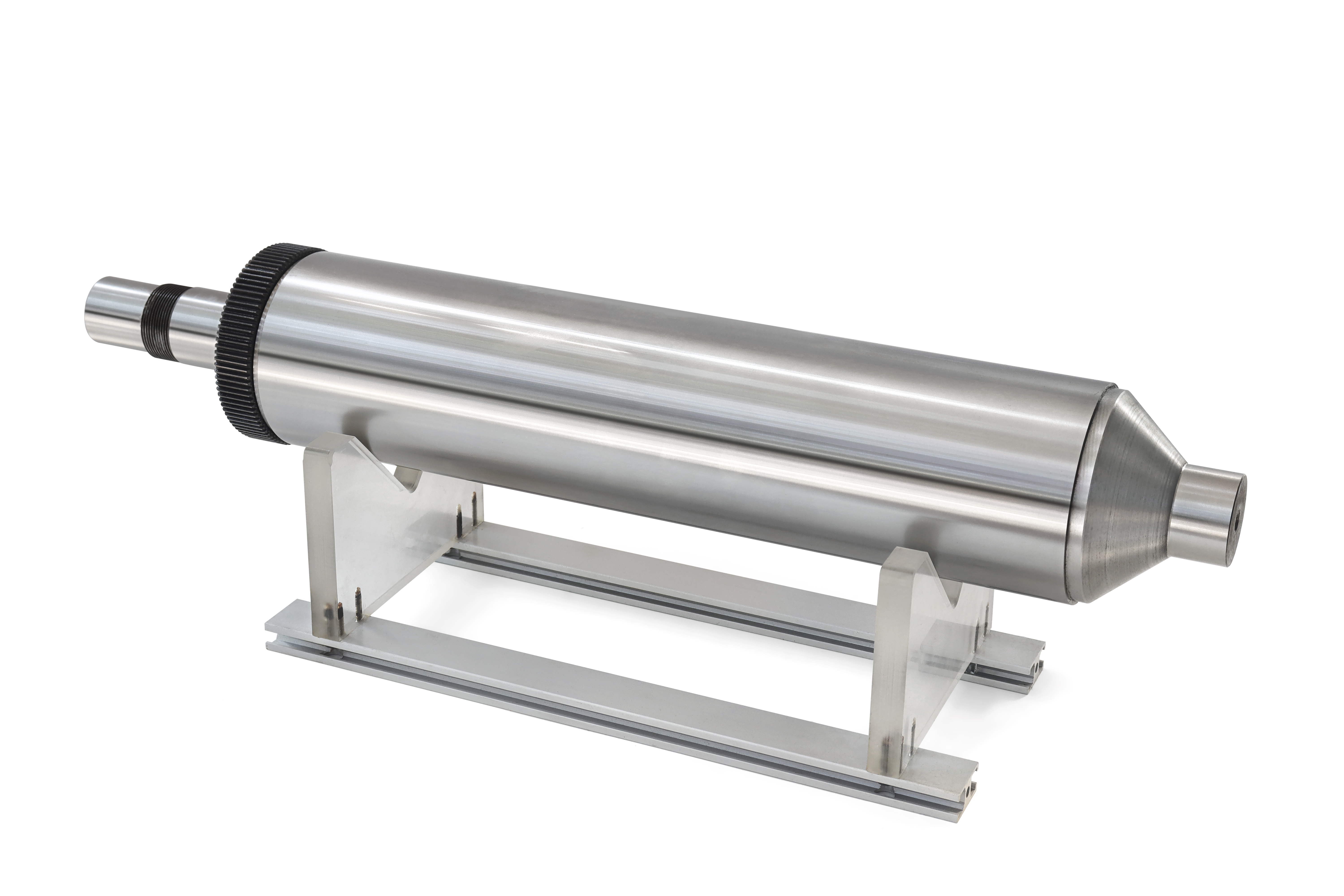

Anvil Cylinder from HCR utilizes high quality tool steel imported from Europe, by vacuum heat treatment the hardness can reach to 60 – 62 Rockwell .The fine grinding and perfect outer circle concentricity of Anvil --Cylinder ensure high quality of precision die-cutting.
Applications:
Any cylinder die-cutting can’t work without Anvil --Cylinder.HCR can make Anvil --Cylinder according to different rotary press.Such as Full rotary letterpress ，Full rotary flex o press，Combined press, Intermittent press and Rotary die-cutting machine that for special processing.
Technical Specifications
1.Use high quality tool steel imported from Europe. By vacuum heat treatment the hardness can reach to 60 – 62 Rockwell .
2.The outer circle accuracy, body and shaft of roller within the scope of 3 micron, ensure concentric roundness when working and enhance roller service life.
3.Each Anvil --Cylinder equipped with an gear according to the design requirements of machine manufacturers. The precision machining and anti-rust treatment is one of key for normal operating of the roller.
Unique Features:
Some die-cutting seat design is under Anvil --Cylinder there is a support roll,some are two roller design which combine Anvil --Cylinder and support roll together .HCR could not only make these kind of Anvil --Cylinder but also supply Anvil-Cylinder according to customers request of special use.
